Beyond its ubiquitous presence in modern society, most overlook the captivating technicalities underlying the plastic products surrounding us. Yet an enthralling world exists behind mass-produced plastic parts we mindlessly interact with each day.
Delve into the fascinating realm of plastic injection molding, an intricate manufacturing process molding granular plastic into the endless array of plastic components indispensable in daily life.
Understanding Injection Molding

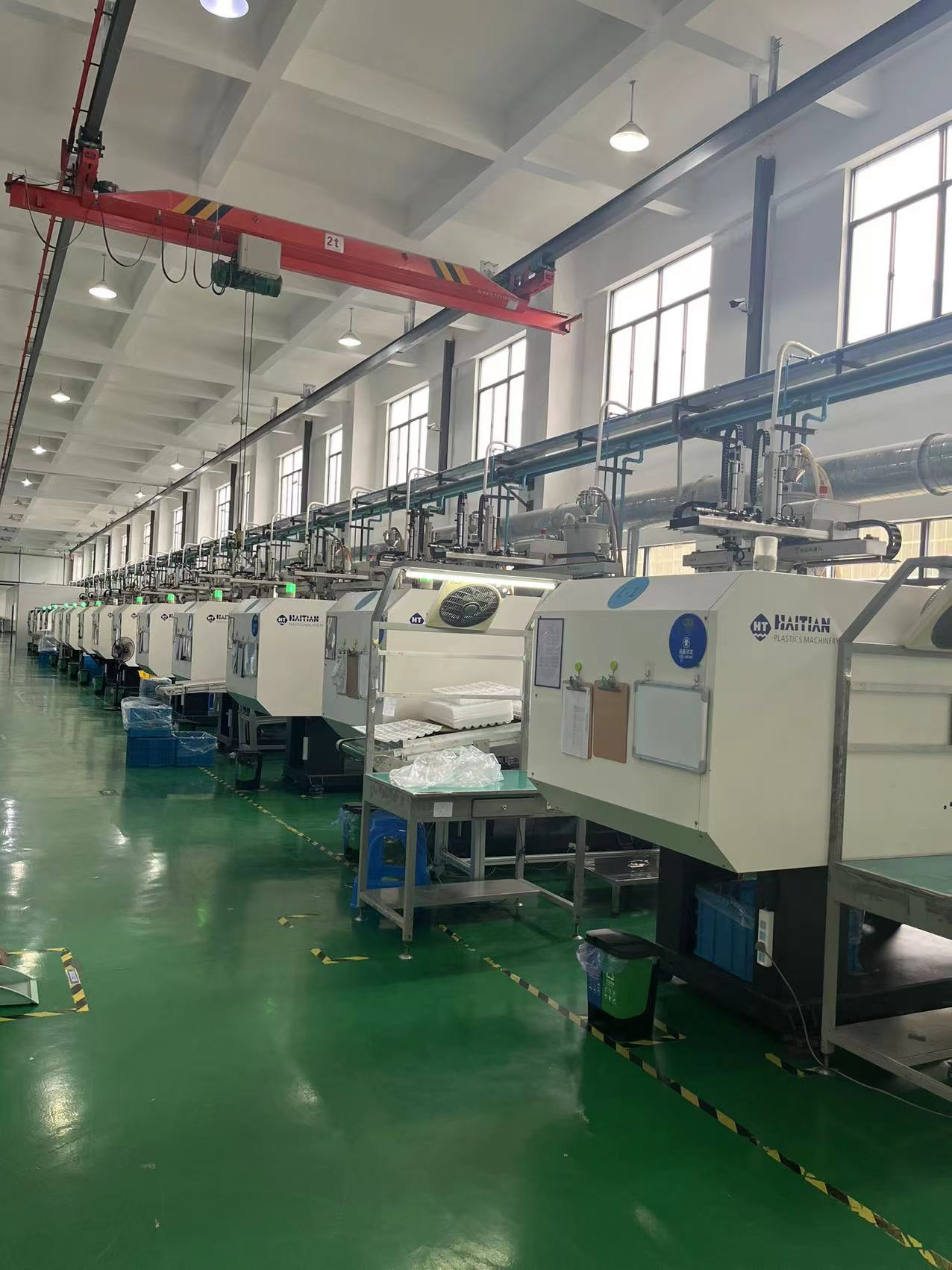

Injection molding utilizes specialized machinery to produce identical plastic parts in mass quantities. Molten plastic is injected under high pressure into a mold cavity, where it cools and hardens into the final part shape before being ejected.
The process requires an injection molding machine, raw plastic material, and a two-part steel mold tool custom-machined to produce the desired part geometry. The mold tool forms the piece’s shape, consisting of two halves mated together – the core side and the cavity side.
When the mold closes, the cavity space between the two sides forms the interior outline of the part to be produced. The plastic is injected through a sprue opening into the cavity space, filling it to form the solid plastic piece.
Preparing the Plastic
The injection molding process begins with plastic in its raw, granular form. The plastic material, typically in pellet or powder form, is gravity fed from a hopper into the injection chamber of the molding machine.
Within the chamber, the plastic becomes subject to intense heat and pressure. It melts into a liquid state so it can be injected through the injection nozzle into the mold tool.
Forcing the Molten Plastic
Once melted into molten form, the plastic is forcefully injected into the mold tool under remarkably high pressure, often 20,000 psi or greater. Powerful hydraulic and mechanical actuators generate sufficient force to push the viscous melted plastic into the mold.
The mold is also kept cool during injection to facilitate solidification of the plastic, which typically enters around 500°F. The juxtaposition of high pressure injection and cool tooling enables rapid filling of intricate mold details and quick solidifying of the plastic into its permanent shape.

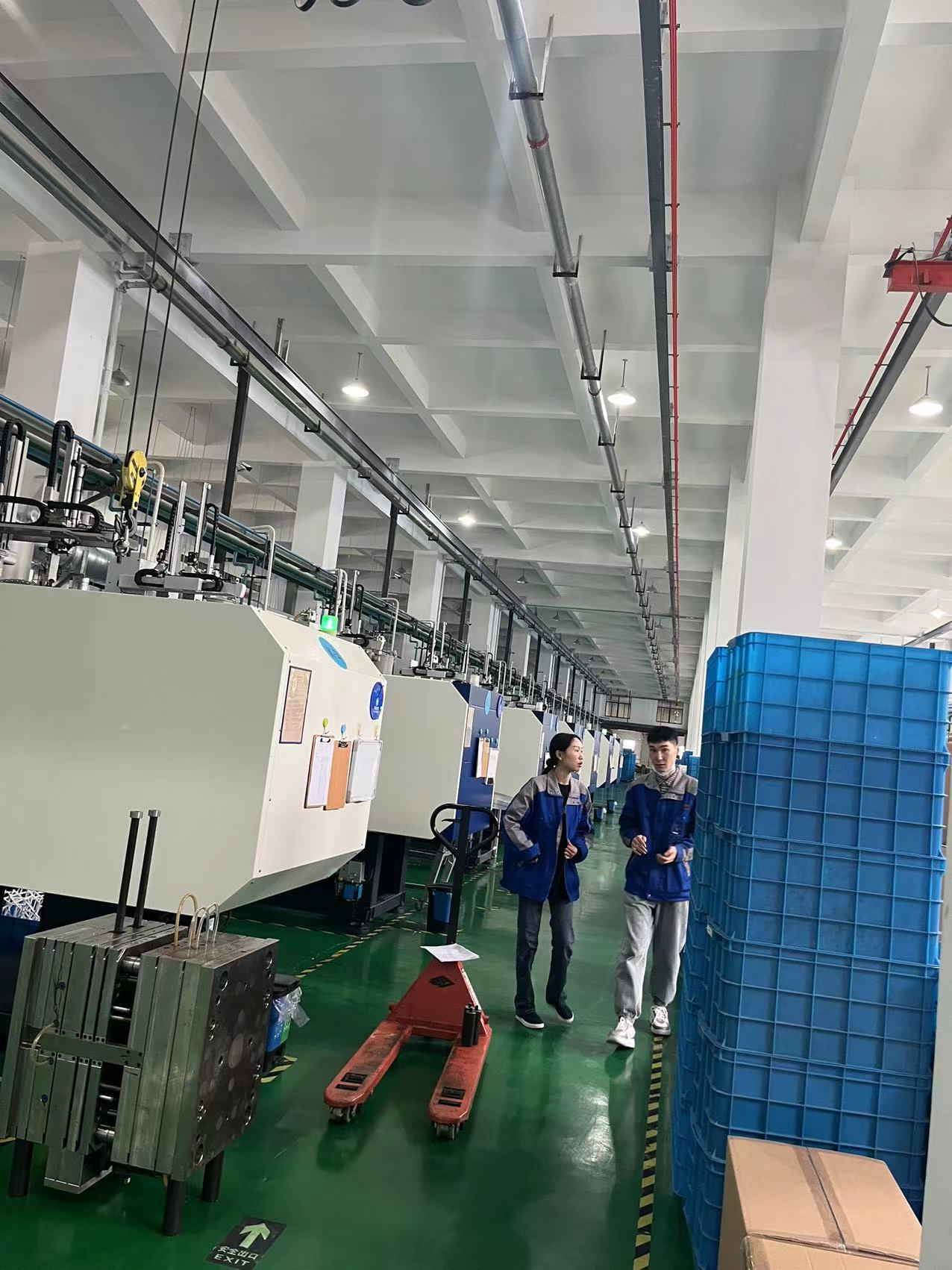

Clamping and Ejecting
A clamping unit exerts force against the two mold halves to keep them closed against the high pressure of the injection. Once the plastic has cooled and hardened sufficiently, usually within seconds, the mold opens and the solid plastic part is ejected out.
Freed of the mold, the plastic piece now exhibits its custom molded geometry and can proceed to secondary finishing steps if required. Meanwhile, the mold closes again and the cyclical injection molding process repeats continuously, producing plastic parts in volumes from dozens to millions.
Variations and Considerations
Myriad design variations and material options exist within injection molding capabilities. Inserts can be placed within the tooling cavity enabling multi-material parts in one shot. The process can accommodate a wide range of engineering plastics from acrylic to nylon, ABS to PEEK.
However, the economics of injection molding favor high volumes. Machined steel molds often cost upwards of $10,000 and require weeks to produce. The method excels when millions of identical parts justify the initial investment in customized tooling.
Despite its unsung nature, injection molding remains a manufacturing marvel, leveraging heat, pressure and precision steel to mass produce the myriad components vital to modern life. The next time you absentmindedly grab a plastic product, consider the creative technological process behind its existence.
